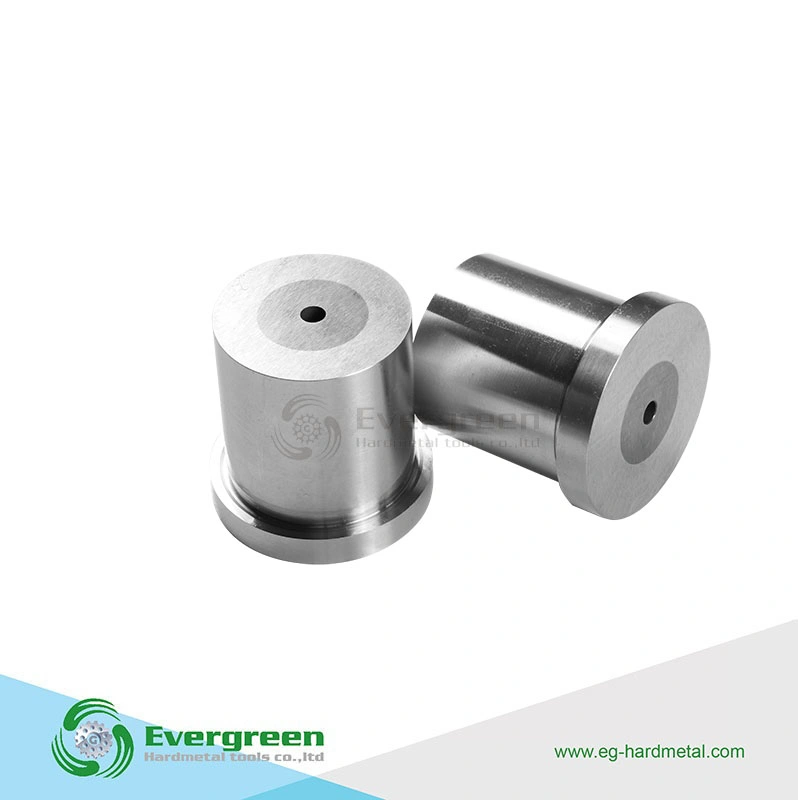

Carbide Yg20c Cold Heading Die Cemented Carbide Bolt Head Die Cemented Carbide Cold Heading Die

ApplicationWire drawing molds are widely used, such as electronic devices, radar, television, instruments and aerospace and other high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire. Wire cable wire and all kinds of alloy wire are drawn by diamond drawing die. The diamond drawing di

Featured Products

Application
Wire drawing molds are widely used, such as electronic devices, radar, television, instruments and aerospace and other high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire. Wire cable wire and all kinds of alloy wire are drawn by diamond drawing die. The diamond drawing die has extremely strong wear resistance and long service life because of the use of natural diamond as raw material.

Grade for Tungsten Carbide Punching Dies
GradesDensity
g/cm3
T.R.S
MPa
Hardness
HRA
Performance & application recommended
YG1114.4260088.5Forming or stamping dies for metal powders and nonmetal powders.
YG1514.0280087.5For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG2013.5320085.5For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG16C13.9290085.5Impact resistance forging dies.
YG18C13.7310084.5Impact resistance forging dies, hot-press forging dies and rollers.
YG20C13.5330083.5Dies for wear resistant or impact resistant application.
YG22C13.3350083.0Nut forming dies and high impact resistance forging dies.
YG25C13.1360082.5Stainless bolt header dies and rollers.

Some typical types of tungsten carbide puching dies
Heading die blanks for making standard bolts
Tungsten Carbide Cold Forging/Heading/Forming Dies in Blanks and Grounded
Die blanks for reducing diameter of nuts
Tungsten Carbide Cold Forging/Heading/Forming Dies in Blanks and Grounded
Heading die blanks for making hexagonal nuts
Tungsten Carbide Cold Forging/Heading/Forming Dies in Blanks and Grounded
Some standard types of tungsten carbide wire drawing dies

Type S11-Carbide drawing die nibs with large reducing angles
for drawing ferrous metal wiresTungsten Carbide Cold Forging/Heading/Forming Dies in Blanks and Grounded
TypeDHRange of dhα°
S11-860.3-1.00.3-0.614°
1080.70.614°
13100.4-2.80.3-1.616°
15130.5-3.00.3-1.416°
16140.4-3.80.3-1.816°
20171.2-4.72.0-2.618°
21171.8-5.71.2-3.018°
22181.7-6.41.2-3.018°

Type W
Tungsten Carbide Cold Forging/Heading/Forming Dies in Blanks and Grounded
TypeDHdhα°
W102-d960.4-1.30.4-0.712°
W103-d1280.2-2.70.5-1.414°
W104-d15100.5-5.00.5-2.014°
W105-d20141.0-7.50.8-2.014°-16°
W106-d25185.3-8.01.9-2.216°
W107-d30222.9-11.72.2-3.616°
W108-d35256.0-16.02.5-4.816°
W109-d402710.3-16.53.2-4.618°
W110-d503014.4-19.44.4-4.818°
W111-d603518.5-274.8-5.618°
W112-d704024.5-31.55.4-6.018°

Cemented Carbide Yg20c Cold Forging Dies Carbied Bolt Head Dies Tungsten Carbide Cold Heading Dies

Cemented Carbide Yg20c Cold Forging Dies Carbied Bolt Head Dies Tungsten Carbide Cold Heading Dies

Cemented Carbide Yg20c Cold Forging Dies Carbied Bolt Head Dies Tungsten Carbide Cold Heading Dies
Advantage

1. Superior strength, toughness and high wear resistance with long working life .
2. 100% virgin tungsten carbide materials
3: ISO 9001 quality control system
4: Professional suggestion on products
5: Is very wide, mainly for drawing bar, wire, wire, pipes and other linear objects difficult to process for steel, copper, tungsten, molybdenum and other metals and alloys drawing processing;
